FKHT-1000Bar
Summary：
Author:
Source:
Release time:
2025-06-26
●Three water-filled seals，Designed for high-pressure water systems
●New pumphead structure design
●Zirconia material plunger

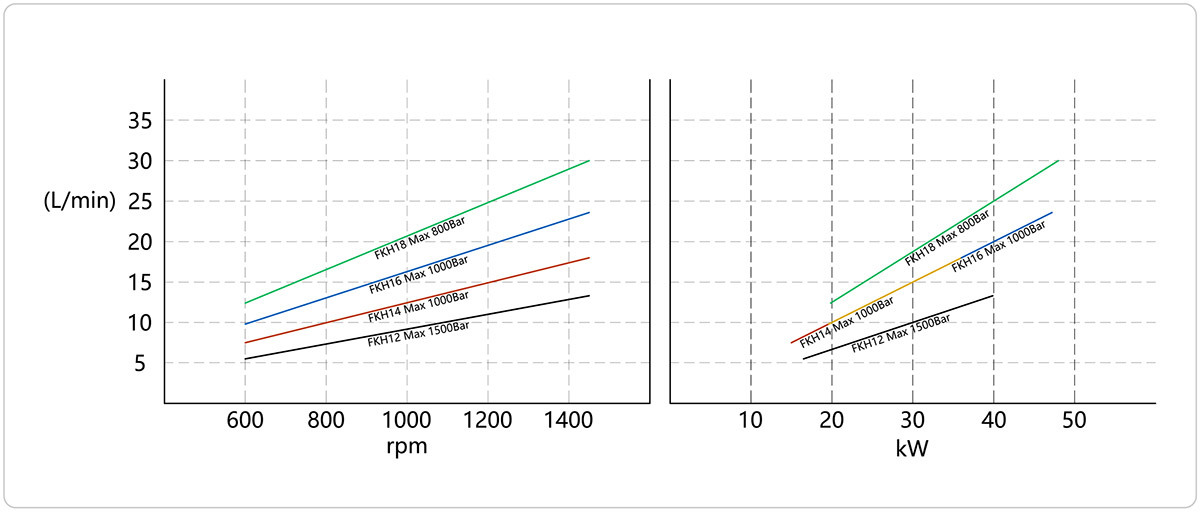

● Product line diagram
● FKHT-N.1450rpm N version Ø30mm
| Model | Max Flow | Max Pressure | Max Power | Max Speed | Inlet | Outlet | Weight | ||||
| L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | kG | ||
| FKHT12 | 13.5 | 3.6 | 1500 | 21750 | 48 | 36 | 1450 | G1/2" | G3/8" | 45 | |
| FKHT14 | 18.5 | 4.8 | 1000 | 14500 | 48 | 36 | 1450 | G1/2" | G3/8" | 45 | |
| FKHT16 | 24 | 6.3 | 1000 | 14500 | 64 | 48 | 1450 | G1/2" | G3/8" | 45 | |
| FKHT18 | 30 | 8 | 800 | 14500 | 64 | 48 | 1450 | G1/2' | G3/8" | 45 | |
FKHT - 1000Bar: An Outstanding Product
FKHT - 1000Bar is a remarkable product that combines high - tech innovation and excellent performance.
1. Design and Construction
This product is meticulously designed with a focus on durability and functionality. Its robust structure is engineered to withstand extreme pressures up to 1000Bar. The materials used in its construction are of the highest quality, carefully selected to ensure long - term reliability. The outer casing is not only resistant to corrosion but also provides excellent protection for the internal components, making it suitable for a wide range of operating environments, whether in industrial settings or in more challenging outdoor conditions.
2. Performance
The FKHT - 1000Bar exhibits exceptional performance capabilities. It offers precise and consistent operation under high - pressure conditions. Whether it is used for fluid transfer, pressure measurement, or other applications related to high - pressure systems, it can deliver accurate results. Its advanced technology enables it to maintain stable performance over extended periods, reducing the need for frequent maintenance and replacement.
3. Versatility
One of the key features of FKHT - 1000Bar is its versatility. It can be integrated into various systems, such as hydraulic systems, pneumatic systems, and certain specialized industrial processes. It is compatible with different types of fluids and gases, further expanding its range of applications. This versatility makes it a preferred choice for many industries, including manufacturing, energy, and automotive.
4. Safety Features
Safety is a top priority in the design of FKHT - 1000Bar. It is equipped with multiple safety mechanisms to prevent over - pressure situations and potential damage. These safety features not only protect the product itself but also safeguard the overall system in which it is installed. Additionally, it has clear indicators and warning systems to alert operators of any abnormal conditions, allowing for timely intervention.
In conclusion, FKHT - 1000Bar is a high - quality product that offers a combination of performance, versatility, and safety. It is an ideal solution for any application that requires reliable operation under high - pressure conditions.
