FKT-N
Category:
Summary：
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Can be coupled to various types of motors, directly or with flexible joint. Pump body and cover in die-cast aluminium alloy. Side cover may be blind or incorporate oil sight glass. Rear cover with oil drain outlet. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. One-piece ceramic pistons. Pump head in Stainless Steel. Double gasket sealing system. Intake and delivery valves have plugs for easier maintenance.
Keywords:
- Product description

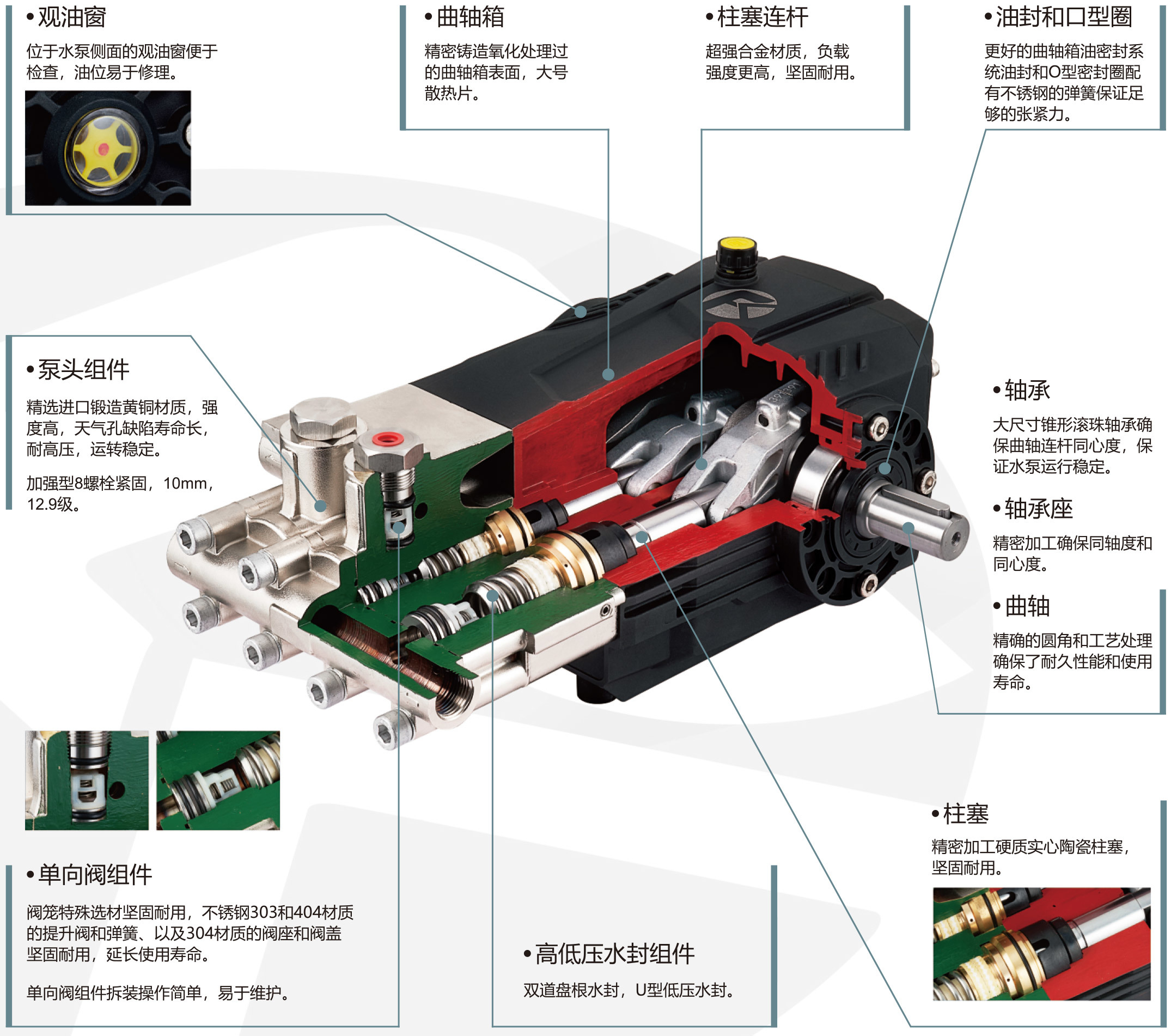

- Dissection diagram
-
- Commodity name: FKT-N
- Commodity ID: FKT-N
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Can be coupled to various types of motors, directly or with flexible joint. Pump body and cover in die-cast aluminium alloy. Side cover may be blind or incorporate oil sight glass. Rear cover with oil drain outlet. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. One-piece ceramic pistons. Pump head in Stainless Steel. Double gasket sealing system. Intake and delivery valves have plugs for easier maintenance.
● Extended back cover for water cooling
● Designed for high-pressure water systems
● New pumphead structure design
● Zirconia material plunger

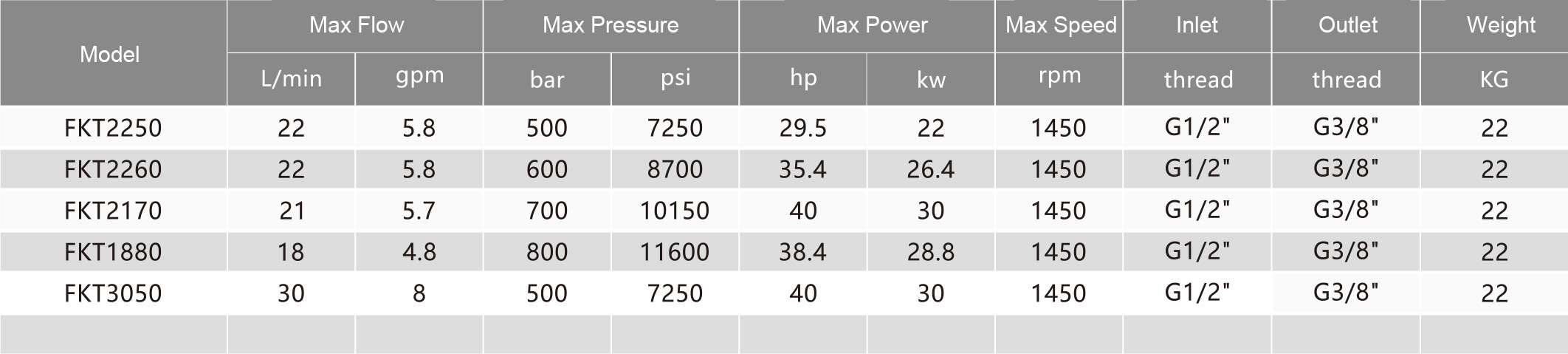

● Product line diagram
● FKT-N.1450rpm N version Ø24mm
-
